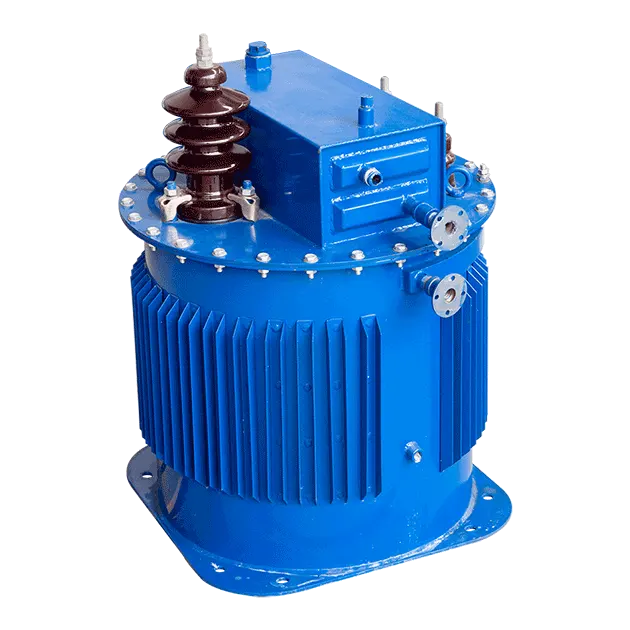

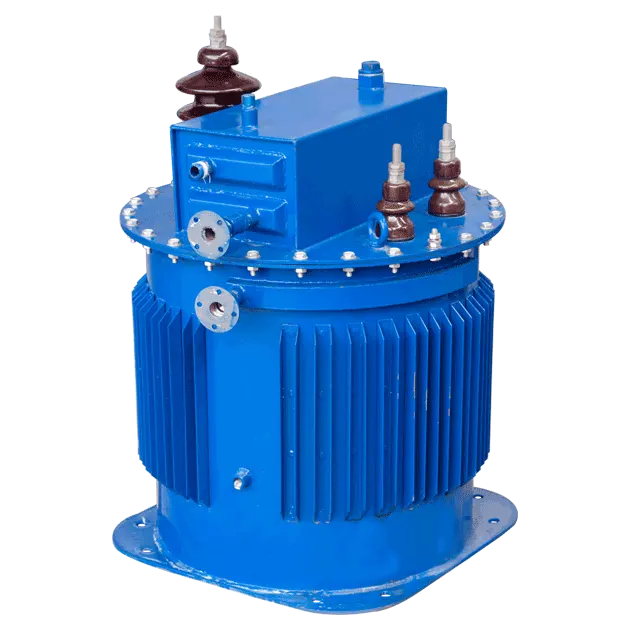

T-HV Series High Voltage Transformer

Quick Quote

Highlights

Specially designed for ozone generation system
Iron core built from grain-oriented high performance silicon sheet
Coil winding made of oxygen-free cooper rod with vacuum impregnation treatment
Oil-filled, fine cooling design
Both single-phase and three-phase operation optional

Specifications

Models	T-HV-900	T-HV-1800	T-HV-3600	T-HV-5700	T-HV-8100	T-HV-13K	T-HV-15K	T-HV-30K	T-HV-45K
Nominal Specifications
Input Voltage	220VAC		380VAC, 3-phase
Frequency	50Hz
Output Voltage	15KV
Rated Power	900VA	1800VA	3600VA	5700VA	8100VA	13KVA	15KVA	30KVA	45KVA

More voltage configurations may be available. Please contact us directly for more details.
Due to continuing improvements, the product is subject to change without prior notice.
